Description

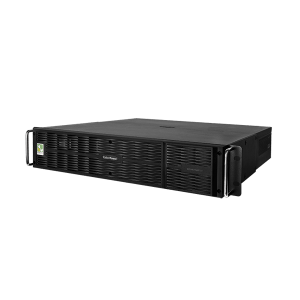

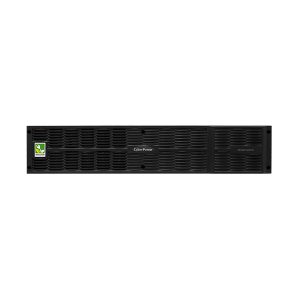

CyberPower?s BPE48V75ART2U Battery Pack offers extended run-time to the PR3000ELCDRT2U model UPS.
These 2U packs esthetically match the UPS and can similarly be rack or tower-mounted. The heavy gauge power cord is adapted with plug-n-play DC connectors for easy installation. The metal enclosure safely houses the 8 (eight) 12V 9Ah batteries which are connected via 3 strings of 4 in series.
Features & Benefits:
- Form Factor ? 2U configuration supports both rack and tower mounting
- Metal Housing ? Rigid metal construction allows for placement in areas with a demanding environment.
- Power On/Off Switch – Local power switch for manual reset and control.

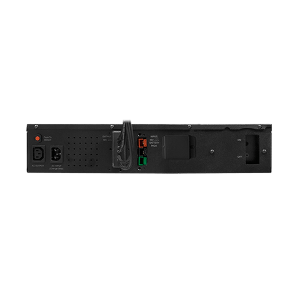

- Back-panel fuse – User replaceable fuse which is easily accessed from the rear panel.
*PR3000ELCDRT2U allows you to connect up to 5 extended battery packs for extended runtimes*
| Model | BPE48V75ART2U |
| Voltage | 48Vdc |
| Amperage | 60A |
| Physical | |
| Dimensions(H x W x D)(mm) | 88 x 433 x 480 |
| Weight (kg) | 35 |
| Battery | |
| Sealed Maintenance Free Lead Acid Battery | 12V 9AH X 8 |
| Interface | PP75 |
| Typical Recharge Time | 5 Hours |
| Built-in Charger | Yes |
| Environmental | |
| Operating Temperature | 32?F to 104?F ( 0?C to 40?C) |
| Operating Humidity | 0 to 95% Non-Condensing |
