Description
The Uptime Systems ELITE Series 650VA UPS power supply system (ES650-AVR) is a compact line-interactive UPS designed to provide stable backup power for computers, workstations, networking equipment, and other essential electronic devices. With 650VA / 360W capacity, built-in voltage regulation, and an LCD display, it helps maintain reliable power and provides clear visibility of UPS operating status.
The UPS features a 12V/7Ah lead-acid battery, Australian 240V sockets, a super-fast charger with a typical 2–4 hour recharge time, and USB communication for shutdown software. Its compact tower design makes it suitable for home offices, small businesses, and IT environments where space is limited. The unit is backed by a 2-year advanced replacement warranty.
Product Features
- This UPS system from the ELITE series has an in-built voltage regulator that helps regulate the voltage spikes or fluctuations protecting the connected devices.
- Built in Surge Protection

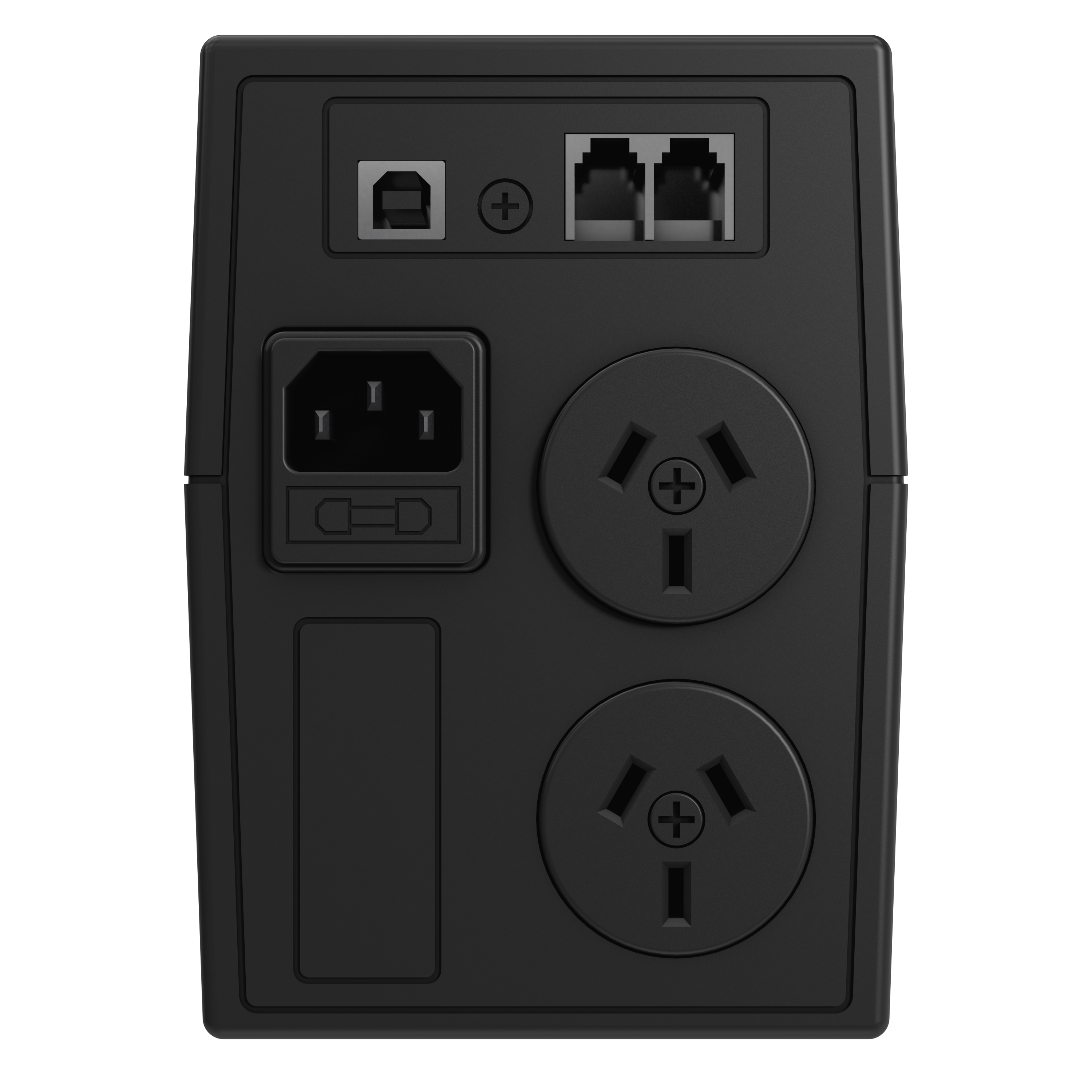

- Australian Sockets 240V

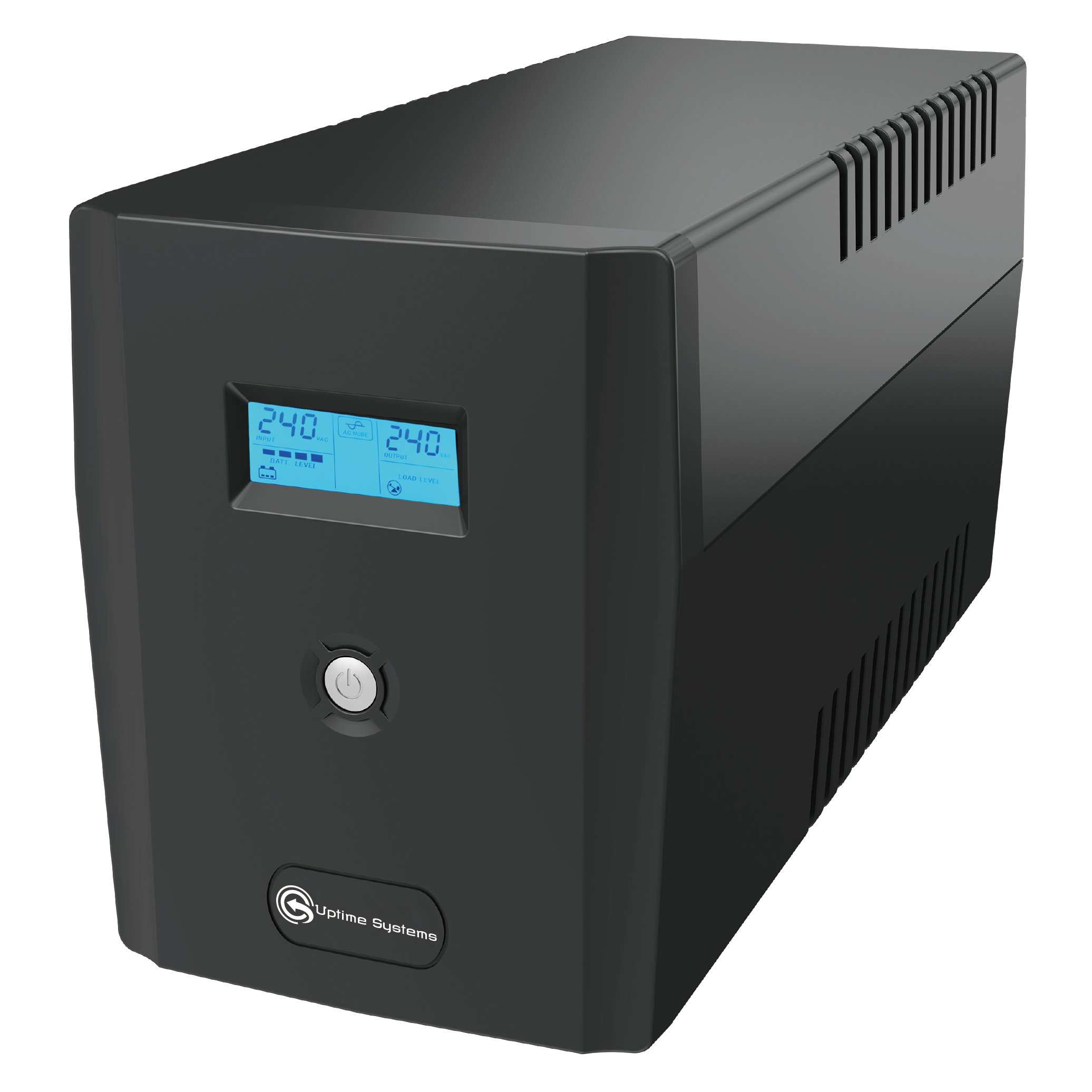

- LCD Display
- The charging time is as low as 2 to 4 hours.
- Also, this uninterruptible power supply comes with a 2-year advanced replacement warranty.
- Dimensions 298 D *101 W *142 H (MM)
- Weight 4.4 KG
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| General | Product Name | Uptime Systems ELITE Series 650VA Uninterruptible Power Supply |
| Model | ES650-AVR | |
| Product Type | Line-Interactive UPS | |
| Capacity | 650VA / 360W | |
| Form Factor | Tower | |
| Display | LCD Display | |
| Voltage Regulation | Built-in Automatic Voltage Regulation (AVR) | |
| Design | Compact, Energy-Saving Design | |
| Input | Nominal Input Voltage | 230/240V AC |
| Input Voltage Range | 170–280V AC | |
| Input Frequency | 50/60 Hz | |
| Input Connection | Australian Plug | |
| Output | Output Capacity | 650VA / 360W |
| Nominal Output Voltage | 230/240V AC | |
| Output Sockets | Australian 240V Sockets | |
| Output Waveform | Stepped/Simulated Sine Wave | |
| Transfer Time | Typical 2–6 ms | |
| Battery | Battery Type | Lead-Acid |
| Battery Configuration | 12V / 7Ah × 1 | |
| Recharge Time | Approximately 2–4 Hours | |
| Battery Backup | Yes | |
| Charger | Super-Fast Charger | |
| Protection | Automatic Voltage Regulation | Yes |
| Surge Protection | Yes | |
| Overload Protection | Yes | |
| Voltage Fluctuation Protection | Yes | |
| Communication & Monitoring | Communication Interface | USB |
| Shutdown Software | Supported | |
| Status Monitoring | LCD Display | |
| Physical Specifications | Dimensions (W × H × D) | 100 × 143 × 290 mm |
| Net Weight | 4.4 kg | |
| Colour | Black | |
| Environmental | Operating Temperature | 0°C to 40°C |
| Noise Level | Less than 40 dB | |
| Warranty | Warranty | 2-Year Advanced Replacement Warranty |
| Applications | Recommended Use | Computers, Workstations, Networking Equipment, Home Offices, Small Business IT Equipment and Essential Electronics |
