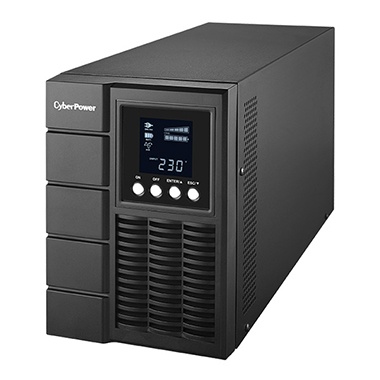

The Online OLS1500E UPS with LCD readout and pure sine wave output safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that requires seamless connection and advanced power protection. Its Double-Conversion topology is generator compatible and delivers consistent and having zero transfer time during power outages, protecting connected equipment and preventing costly business interruptions. The LCD control panel provides various different settings for status and operation. Functions include menus for checking power status on different parameters, settings for setup, control and testing and selections for event logging.
The OLS1500E features remote network management capabilities which include the PowerPanel® Business Edition software, an optional SNMP/ HTTP remote management card, and an optional ENVIROSENSOR. These management tools enable administrators to perform various operations including remote management, real-time monitoring, UPS configuration, and scheduled server/workstations shutdowns. All Smart App UPS systems and Remote Management Card have achieved the status of Cisco EnergyWise certified, better supporting other EnergyWise-enabled entities and be easily monitored and controlled to achieve the best energy performance under the EnergyWise operation framework.
General
|
 |
| UPS Topology |
Double-Conversion |
| Energy Saving |
ECO Mode Efficiency > 95% |
| Active PFC Compatible |
Yes |
|
|
Input
|
|
| Voltage |
230Vac |
| Input Voltage Range |
160Vac - 300Vac |
| Adjustable Voltage Range |
110Vac - 300Vac |
| Input Frequency Range |
40Hz - 70Hz |
| Rated Input current |
10A |
| Input Power Factor |
?0.98 |
| Cold Start |
Yes |
| Backfeed Protection |
Yes |
| Plug Type |
IEC C14 |
| Plug Style |
right |
| Input Current (Amp) |
10A |
| Cord Length (ft.) |
6 |
| Cord Length (m) |
1.8 |
|
|
Output
|
|
| VA |
1500 |
| Watts |
1350 |
| On Battery Waveform |
Sine Wave |
| On Battery Voltage |
208, 220, 230, 240Vac (Configurable) |
| Automatic Voltage Regulation (Line Mode) |
± 1% |
| On Battery Frequency |
50/60Hz ± 0.5% (Auto-Sensing or Configurable) |
| Overload Protection |
AC Mode: Warning only @ 110%>Load>105%, Transfer to bypass after 60sec @ 120%>Load>110%, Transfer to bypass immediately@ Load>120ºttery Mode: Warning only @ 110%>Load>105%, Shutdown after 10sec @ 120%>Load>110%, Shutdown immediately @ Load>120% |
| Outlets - Total |
4 |
| Outlet Type |
IEC320 C13 |
| Outlets - Battery & Surge Protected |
4 |
| Outlets - Critical Load |
4 |
| Rated Power Factor |
0.9 |
| Crest Factor |
3:1 |
| Harmonic Distortion |
THD < 3% at Linear Load, < 5% at Non-linear Load |
| ECO Mode Voltage Regulation |
± 10%, ± 15% ,± 20% (Configurable) |
| Bypass |
Internal Bypass (Automatic and Manual) |
| Transfer Time |
0ms |
|
|
Battery
|
|
| Runtime at Half Load (min) |
14 |
| Runtime at Full Load (min) |
5 |
| Battery Type |
Sealed Lead-Acid |
| Battery Number |
HRC1234 |
| Battery Size |
12V/9AH |
| Battery Quantity |
3 |
| Typical Recharge Time |
5 Hours |
| Smart Battery Management (SBM) Mode |
Yes |
| Extended Battery Module |
BPSE36V45A |
|
|
Surge Protection & Filtering
|
|
| Surge Suppression |
440 Joules |
| Phone Protection RJ11 |
Yes |
| Phone / Network Protection RJ11/RJ45 |
1-In, 1-Out |
| EMI/RFI Filtration |
Yes |
|
|
Management & Communications
|
|
| LCD Control Panel |
Yes |
| Multifunction LCD Diagnostic Display |
22 different status options via the UPS Information menu and Event Log menu |
| HID Compliant USB Port |
Yes |
| Serial Port |
Yes |
| Emergency Power Off (EPO) Port |
Yes |
| Management Cable |
USB Cable, Serial Cable, Phone Cable |
| Audible Alarms |
Yes |
| Software |
PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD302 / RMCARD303 |
|
|
Physical
|
|
| Form Factor |
Tower |
| Enclosure Construction |
Steel |
|
|
Physical - UPS Module
|
|
| Dimensions (WxHxD) (in.) |
5.94 x 8.7 x 15.51 |
| Dimensions (WxHxD) (mm.) |
151 x 225 x 394 |
| Weight (kg.) |
15.3 |
|
|
Physical - Battery Module
|
|
| Dimensions (WxHxD) (in.) |
5.94 x 8.7 x 15.51 |
| Dimensions (WxHxD) (mm.) |
151 x 225 x 394 |
| Weight (kg.) |
17.2 |
|
|
Environmental
|
|
| Operating Temperature |
32 °F to 104 °F / 0 °C to 40 °C |
| Operating Humidity |
20% ~ 90% non-condensing |
| Operating Elevation |
0-5000 feet (0-1500 meters) |
| Storage Temperature |
-4 °F to 122 °F / -20 °C to 50 °C |
| Storage Relative Humidity |
10% to 90% |
| Storage Elevation |
0-5000 feet (0-1500 meters) |
| Online Thermal Dissipation |
420 BTU/hr |
| Audible noise at 1.5M from surface of unit |
45dBA |
|
|
Certifications
|
|
| Certifications |
CE, Gost-R |
| RoHS |
RoHS Compliant |
|
|
Warranty
|
|
| Product Warranty |
2 Years Limited |
| Connected Equipment Guarantee |
Lifetime |
| CEG Amount |
100000 AUD |
|
