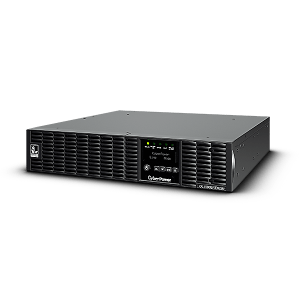

The Online OL1500ERTXL2U UPS with LCD readout and pure sine wave output safeguards mission-critical servers, telecom equipment, VoIP and internetworking hardware that requires seamless connection and advanced power protection. Its Double-Conversion topology is generator compatible and delivers consistent and having zero transfer time during power outages, protecting connected equipment and preventing costly business interruptions. This UPS is ENERGY STAR® qualified and the configurable Economy Mode Setting increases the UPS operating efficiency by up to 95% to save on energy costs by reducing energy consumption and waste heat generated. Smart Battery Management (SBM) charges batteries in several phases to reduce the deterioration of battery capacity hence improve battery life in the long run.
The LCD control panel provides 44 different settings for status and operation. Functions include menus for checking power status on (19) different parameters, (22) settings for setup, control and testing and (3) selections for event logging. With the optional DB26 cable, the LCD control panel can be removed from the UPS and relocated up to 10 feet away from the UPS for ease of use regardless of locations.

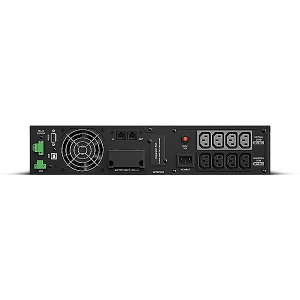

The OL1500ERTXL2U comes with a capacity of 1500VA/1300Watts (0.9 high power factor) that can be configured for an output of 200V, 208V, 220V, 230V and 240V ± 2% for maximum flexibility under different application scenarios. It has eight (8) IEC C13 receptacles, including four (4) for critical loads management, and three (3) hot-swappable, user-replaceable 12V/9Ah batteries. The unit offers one (1) HID USB and one (1) Serial connectivity port with PC and one (1) Emergency Power Off (EPO) port for the capability to immediately power down entire installed equipment from a single access point. This model allows an addition of up to ten (10) BPE36V60ART2US external battery packs to increase the runtime of the unit. The battery packs are easy to plug-in and can be hot-swapped to maintain system uptime during normal UPS maintenance.
The OL1500ERTXL2U features remote network management capabilities which include the PowerPanel® Business Edition software, an optional SNMP/ HTTP remote management card, and an optional ENVIROSENSOR. These management tools enable administrators to perform various operations including remote management, real-time monitoring, UPS configuration, and scheduled server/workstations shutdowns. All Smart App UPS systems and Remote Management Card have achieved the status of Cisco EnergyWise certified, better supporting other EnergyWise-enabled entities and be easily monitored and controlled to achieve the best energy performance under the EnergyWise operation framework.
For as long as you own this product, CyberPower will cover up to $100,000 of properly connected equipment if it’s ever damaged by a surge, including surges due to lightning strikes.
General
|
 |
| UPS Topology |
Double-Conversion |
| Energy Saving |
ECO Mode Efficiency >93% |
| Active PFC Compatible |
Yes |
|
|
Input
|
|
| Voltage |
200 - 240Vac |
| Input Voltage Range |
120Vac – 139Vac for 0 – 60% Load, 140Vac – 159Vac for 0 – 70% Load,160Vac – 179Vac for 0 – 80% Load,180Vac – 189Vac for 0 – 90% Load, 190Vac – 300Vac for 0 – 100% Load |
| Adjustable Voltage Range |
120Vac - 300Vac |
| Input Frequency Range |
50/60Hz ± 10Hz (Auto-sensing) |
| Rated Input current |
7.5 |
| Input Power Factor |
0.99 |
| Cold Start |
Yes |
| Backfeed Protection |
Yes |
| Plug Type |
IEC C14 |
| Plug Style |
Straight |
| Input Current (Amp) |
7.5 |
| Cord Length (m) |
1.8 |
|
|
Output
|
|
| VA |
1500 |
| Watts |
1350 |
| On Battery Waveform |
Sine Wave |
| On Battery Voltage |
200, 208, 220, 230, 240Vac (Configurable) ± 2% |
| On Battery Frequency |
50/60Hz (auto-sensing or configurable) ± 0.25Hz |
| Overload Protection |
Line Mode: 105~125% Load for 1 min, 126~150% Load for 10 secBattery Mode: 105~130% Load for 10 sec, 131~150% Load for 2 sec |
| Outlets - Total |
8 |
| Outlet Type |
IEC320 C13 |
| Outlets - Battery & Surge Protected |
8 |
| Outlets - Critical Load |
4 |
| Outlets - Non-Critical Load (NCL) |
4 |
| Rated Power Factor |
0.9 |
| Crest Factor |
3:1 |
| Harmonic Distortion |
THD < 3% at Linear Load, < 5% at Non-linear Load |
| ECO Mode Voltage Regulation |
± 10%, ± 15% (Configurable) |
| Bypass |
Internal Bypass (Automatic and Manual) |
| Transfer Time |
0ms |
|
|
Battery
|
|
| Runtime at Half Load (min) |
9 |
| Runtime at Full Load (min) |
3 |
| Battery Type |
Sealed Lead-Acid |
| Battery Number |
BB/HR9-12FR |
| Battery Size |
12V/9AH |
| Battery Quantity |
3 |
| User Replaceable |
Yes |
| Hot-Swappable |
Yes |
| Typical Recharge Time |
5 Hours |
| Smart Battery Management (SBM) Mode |
Yes |
| Extended Battery Module |
BPE36V60ART2US |
| Replacement Battery Pack |
RBP0074 |
| Replacement Battery Pack Quantity |
1 |
|
|
Surge Protection & Filtering
|
|
| Surge Suppression |
1,780 Joules |
| Phone / Network Protection RJ11/RJ45 |
1-In, 1-Out (Combo) |
| EMI/RFI Filtration |
Yes |
|
|
Management & Communications
|
|
| LCD Control Panel |
Yes |
| Multifunction LCD Diagnostic Display |
22 different status options via the UPS Information menu and Event Log menu |
| Detachable LCD Control Panel Option |
Yes (Requires a separate DB26 Cable) |
| HID Compliant USB Port |
Yes |
| Serial Port |
Yes |
| Emergency Power Off (EPO) Port |
Yes |
| Dry Contacts |
Yes (Configurable, [I/P Power Fail] [Battery Low] [Summary Alarm] [UPS On Bypass] [UPS Fail]) |
| Management Cable |
USB Cable, Serial Cable, Phone Cable |
| LED Indicators |
Power On (White), Line Mode (Green), Battery Mode (Yellow), Bypass Mode (Yellow), Fault (Red), Replace Battery (Red) |
| Audible Alarms |
Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
| Software |
PowerPanel® Business Edition |
| SNMP / HTTP Remote Monitoring |
Yes, with optional RMCARD302 / RMCARD303 |
|
|
Physical
|
|

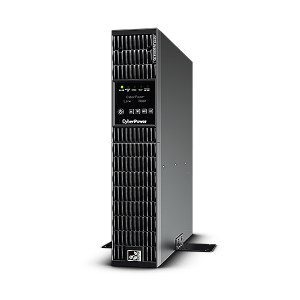

| Form Factor |
Rack/Tower |
| Enclosure Construction |
Steel |
| Mounting Hardware |
Included |
|
|
Physical - UPS Module
|
|
| Dimensions (WxHxD) (mm.) |
433 x 88 x 430 |
| Weight (kg.) |
18 |
| Installed Rack Height |
2U |
|
|
UPS Module (Shipping Dimensions)
|
|
| Dimensions (WxHxD) (mm.) |
575 x 240 x 550 |
| Weight (kg.) |
24.5 |
|
|
Environmental
|
|
| Operating Temperature |
32 °F to 104 °F / 0 °C to 40 °C |
| Operating Humidity |
0% - 90% non-condensing |
| Operating Elevation |
0-10000 feet (0-3000 meters) |
| Storage Temperature |
5 °F to 113°F / -15°C to 45 °C |
| Storage Relative Humidity |
0% - 95% non-condensing |
| Storage Elevation |
0-50000 feet (0-15000 meters) |
| Online Thermal Dissipation |
512 BTU/hr |
| Audible noise at 1.5M from surface of unit |
55 dBA |
|
|
Certifications
|
|
| Certifications |
CE, C-tick |
| RoHS |
RoHS Compliant |
|
|
È
Warranty
|
|
| Product Warranty |
3 Years Advanced Replacement |
| Connected Equipment Guarantee |
Lifetime |
| CEG Amount |
100000 AUD |
|
