APC Smart-UPS SRT 5000VA RM 230V

$8,759.19 inc. GST

APC Smart-UPS SRT 5000VA RM 230V
High density, double-conversion on-line power protection with scalable runtime.
Includes:Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, Warranty card, Web/SNMP management card



Output power capacity

4.5kWatts /5.0kVA

Rack Height

3U

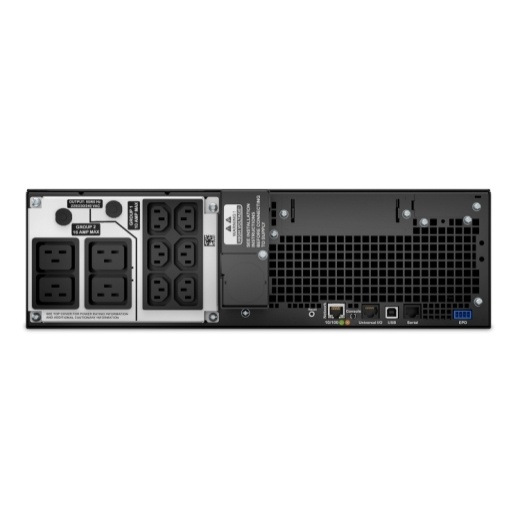

Output Connections

(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

Hard wire 3-wire (1P + N + E)
SKU: SRT5KRMXLI Categories: , , ,

Description

Smart-UPS On-Line

Features & Benefits

Adaptability

Rack/Tower convertible

Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Plug-and-Play external batteries

Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Flash upgradeable firmware

Install maintenance releases of firmware remotely using FTP.

Marketing features

Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Low operating and maintenance costs with proven reliability and intelligent battery management .

Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Save time with easy and convenient remote/network accessibility.

Network manageable via serial, USB or Ethernet. Includes Powerchute Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data protected and available .

Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Manageability

SmartSlot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

Network manageable

Most models provide remote power management options of the UPS Systems over the network. Many do not have NMC embedded.

LED status indicators

Quickly understand unit and power status with visual indicators.

InfraStruXure Manager Compatible

Enables centralized management via the APC InfraStruXure Manager.

Serviceability

Disconnected battery notification

Warns when a battery is not available to provide backup power.

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Availability

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Scalable runtime

Allows additional run time to be quickly added as needed.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Protection

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Resettable circuit breaker

Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Frequency and voltage regulation

Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Cold-start capable

Provides temporary battery power when the utility power is out.

TECHNICAL SPECIFICATIONS

Output

Max Configurable Power (Watts)

4.5kWatts / 5.0kVA

Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 – 70 Hz Auto-sensing

Input voltage range for main operations

100 – 275 Adjustable (half load)V

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

1.5hour(s)

Nominal Battery Voltage

192 V

Replacement Battery

APCRBC140

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

560 Watts

Extendable Run Time

1

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

480Joules

Physical

Maximum Height

130MM, 13.0CM

Maximum Width

432MM, 43.2CM

Maximum Depth

719MM, 71.94CM

Net Weight

54.43KG

Shipping weight

66.86KG

Shipping Height

330MM, 33.0CM

Shipping Width

610MM, 61.0CM

Shipping Depth

960MM, 96.0CM

Color

Black

Units per Pallet

6.0

Environmental

Operating Temperature

0 – 40°C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3048meters

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 15240meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

931.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant

Additional information

Application

Corporate & Enterprise, Servers
BrandName

APC
