Description

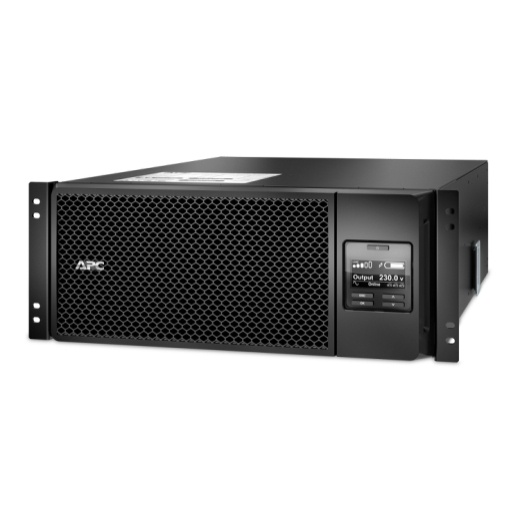

The APC Smart-UPS SRT 6000VA RM 230V (SRT6KRMXLI) is a high-performance, double-conversion online uninterruptible power supply (UPS) designed to deliver reliable, continuous power protection for critical IT infrastructure, enterprise servers, networking equipment and data centre applications.
With a power capacity of 6kW / 6kVA, this rack-mountable UPS provides clean, stable sine wave output and zero transfer time to battery during power interruptions. Its advanced power conditioning technology protects connected equipment against power surges, voltage fluctuations, electrical noise and other power disturbances.
Featuring intelligent battery management, hot-swappable batteries, automatic bypass and scalable runtime, the APC Smart-UPS SRT 6000VA helps maximise equipment availability while simplifying maintenance. Network management capabilities, an LCD control panel and multiple communication interfaces enable convenient monitoring and control.
Designed for demanding business environments, this 4U rack-mount UPS delivers dependable power protection, operational efficiency and flexibility for mission-critical applications.
Technical Specifications
|
Category |
Specification |
Details |
|---|---|---|
|
General |
Product Name |
APC Smart-UPS SRT 6000VA RM 230V |
|
Model |
SRT6KRMXLI |
|
|
Brand |
APC |
|
|
Product Type |
Online Double Conversion UPS |
|
|
Capacity |
6000VA / 6kVA |
|
|
Output Power |
6.0kW |
|
|
Topology |
Double Conversion Online |
|
|
Form Factor |
4U Rack Mount |
|
|
Application |
Corporate, Enterprise and Servers |
|
|
Output |
Nominal Output Voltage |
230V |
|
Other Output Voltages |
220V, 240V |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Output Frequency |
50/60Hz ± 3Hz (Synchronised to Mains) |
|
|
Output Voltage Distortion |
Less than 2% |
|
|
Load Crest Factor |
3:1 |
|
|
Bypass |
Internal Automatic and Manual Bypass |
|
|
Input |
Nominal Input Voltage |
230V |
|
Input Voltage Range |
100–275V (Adjustable, Half Load) |
|
|
Other Input Voltages |
220V, 240V |
|
|
Input Frequency |
40–70Hz (Auto-sensing) |
|
|
Input Connection |
Hardwire 3-Wire (1P + N + E) |
|
|
Output Connections |
Hardwired Output |
3-Wire (H, N + E) |
|

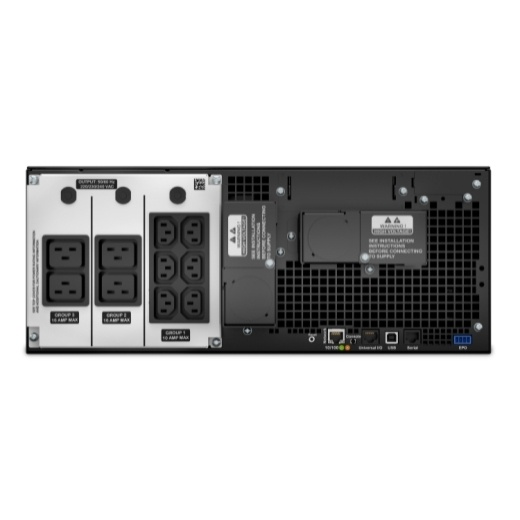

IEC C13 Outlets |
6 × IEC 60320 C13 |
|
|
IEC C19 Outlets |
4 × IEC 320 C19 |
|
|
Additional Connections |
2 × IEC Jumpers |
|
|
Batteries & Runtime |
Battery Type |
Lead-Acid Battery |
|
Nominal Battery Voltage |
192V |
|
|
Replacement Battery |
APCRBC140 |
|
|
Battery Quantity |
1 RBC |
|
|
Typical Recharge Time |
1.5 Hours |
|
|
Expected Battery Life |
3–5 Years |
|
|
Battery Charge Power |
597W |
|
|
Extendable Runtime |
Yes |
|
|
Battery Management |
Intelligent Battery Management |
|
|
Battery Replacement |

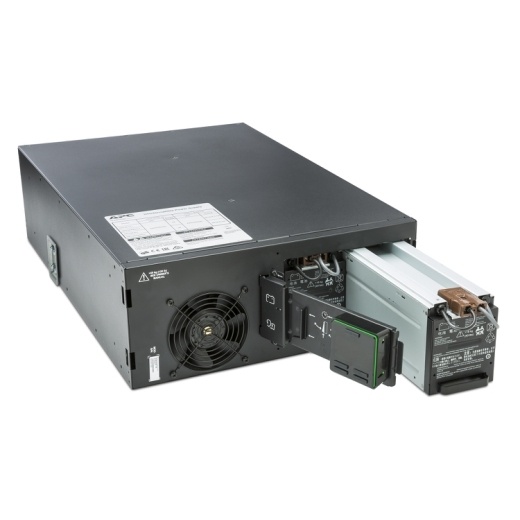

Hot-Swappable, User-Replaceable |
|
|
Communications & Management |
Interface Ports |
RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB |
|
Control Panel |
Multifunction LCD Status and Control Console |
|
|
Audible Alarm |
Audible and Visual Alarms |
|
|
Emergency Power Off (EPO) |
Yes |
|
|
SmartSlot Interface |
1 |
|
|
Network Management |
Network Manageable |
|
|
Monitoring Software |
PowerChute Software |
|
|
Protection & Safety |
Surge Energy Rating |
480 Joules |
|
Power Conditioning |
Yes |
|
|
Input Power Factor Correction |
Yes |
|
|
Cold Start Capability |
Yes |
|
|
Generator Compatibility |
Yes |
|
|
Automatic Bypass |
Yes |
|
|
Overload Protection |
Resettable Circuit Breaker |
|
|
Frequency & Voltage Regulation |
Yes |
|
|
Physical |
Maximum Height |
174mm |
|
Maximum Width |
432mm |
|
|
Maximum Depth |
719mm |
|
|
Net Weight |
60kg |
|
|
Shipping Weight |
67kg |
|
|
Colour |
Black |
|
|
Rack Height |
4U |
|
|
Environmental |
Operating Temperature |
0°C to 40°C |
|
Operating Relative Humidity |
0–95% (Non-condensing) |
|
|
Operating Elevation |
0–3,048m |
|
|
Storage Temperature |
-15°C to 45°C |
|
|
Storage Relative Humidity |
0–95% (Non-condensing) |
|
|
Storage Elevation |
0–15,240m |
|
|
Audible Noise |
55dBA (at 1 metre) |
|
|
Thermal Dissipation |
1,300 BTU/hr |
|
|
Protection Class |
IP20 |
|
|
Compliance & Warranty |
Approvals |
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
|
RoHS |
Compliant |
|
|
Product Warranty |
3 Years (Repair or Replacement, excluding battery) |
|
|
Battery Warranty |
2 Years |
